Cylindrical mounts-buffer type DE seires

DE seires is FEMALE BUFFERS TYPE. the demension range is available in various sizes between 8 – 150mm,suitable for use on any application in need of vibration isolation where a Male/Male thread is required .they are available in natural rubber as standard but other compounds are available on request. Stainless steel metal parts are also available on request for substantial volume orders.
  • Product Detail

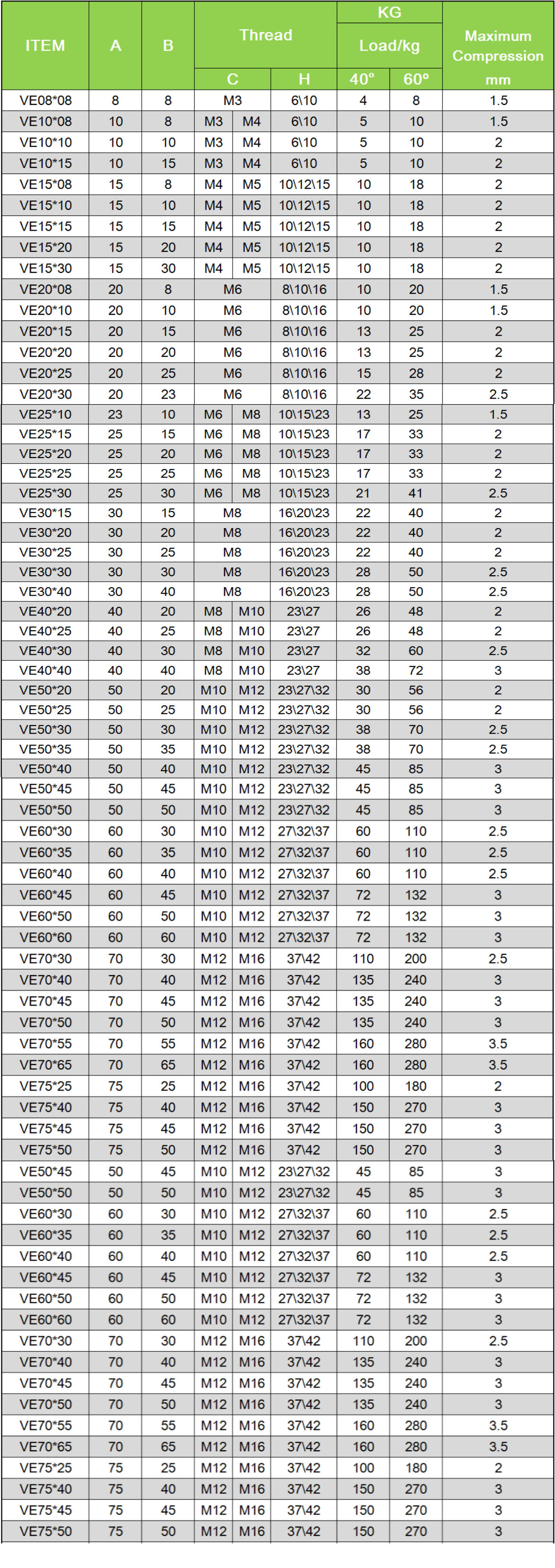

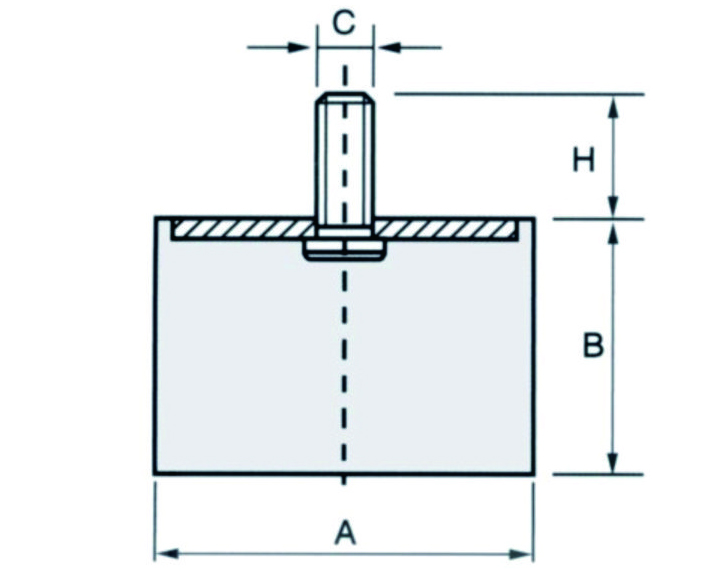

VE buffer drawing.jpgdimension sheet-VE series.jpg

We proviced different type of elastomers upon different request.

Natural Rubber (NR)

Advantages:  Outstanding resilience; high tensile strength; superior resistance to tear and abasion; excellent rebound elasticity (snap); good flexibility at low temperatures (-40° to 155° F).

Limitations:  Poor resistance to heat, ozone, and sunlight; very little resistance to oil gasoline, and hydrocarbon solvents.

  • Operating temperatures should not exceed 155° F.

  • Natural Rubber is not recommended from exposure to oil, gasoline, ozone sunlight.



Neoprene (CR)

All static load test data for the Torsional Vibro-Insulator® Mounts is based on Neoprene.

Advantages:  Good inherent flame resistance; moderate resistance to oil and gasoline; very good resistance to weather, ozone, and natural aging; good resistance to flex cracking; very good resistance to alkalis and acids.

Limitations:  Poor to fair resistance aromatic and oxygenated solvents; limited flexibility at low temperatures (10° F to 180° F).

Nitrile (Buna-N)

Advantages:  Very good resistance to oil and gasoline; superior resistance to petroleum-based hydraulic fluids; wide range of service temperatures (-65° F to 300° F); good resistance to hydrocarbon solvents; very good resistance to alkalis and acids.

Limitations:  Inferior resistance to ozone, sunlight, and natural aging; poor resistance to oxygenated solvents.
