Rubber Solution

Zhong Xiang Rubber is a national high-tech enterprise specializing in the design and manufacture of Rubber Mounts. Our products are widely used in various fields including Industrial Equipment, Railway Locomotives, Wind Power Generation, Construction Machinery, Maritime, Military, Defense, as well as on-road and off-road Vehicles. We are committed to providing high-quality Rubber Mounts to Customers Worldwide, striving to make Zhongxiang Rubber an excellent supplier of Rubber Mounts Components through innovations in Concepts, Management, Technology, Market Strategies, and Products.

Home Products

Cylindrical Mounts-Female female Type DD Seires

piece

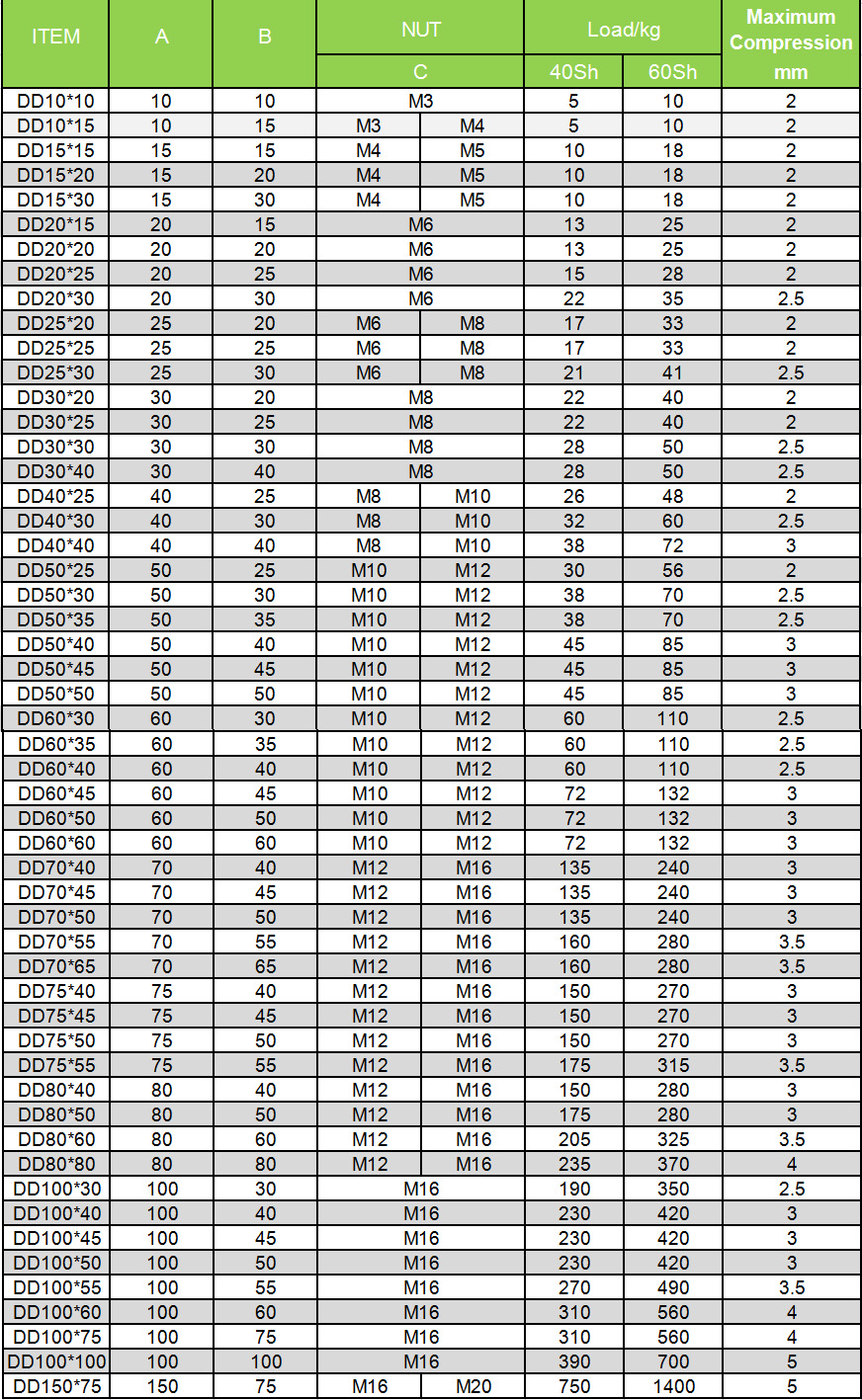

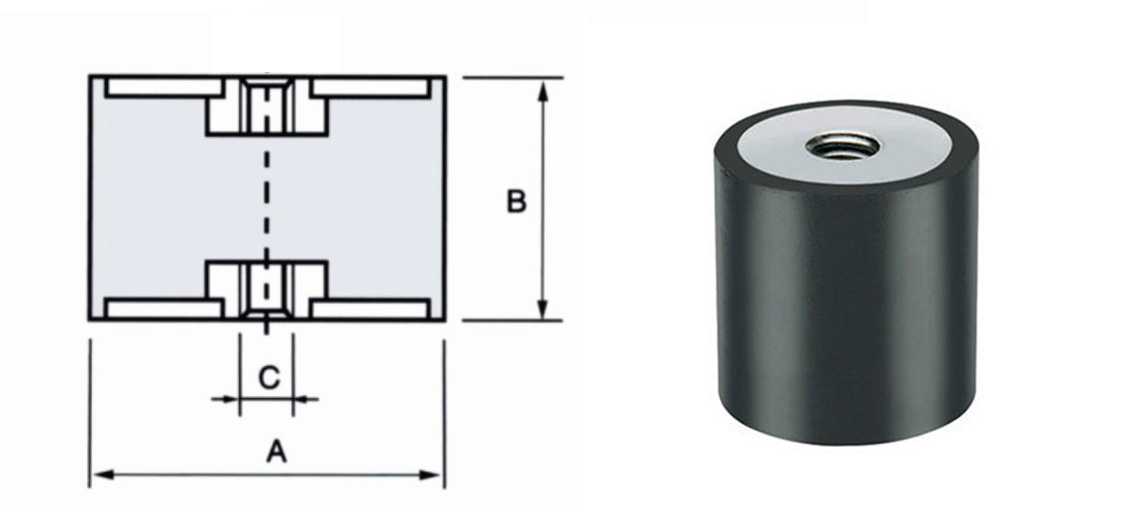

Cylindrical Mounts-Female female Type DD(male/male) Seires, the demension range is available in various sizes between 8 – 150mm,suitable for use on any application in need of vibration isolation where a Male/Male thread is required .they are available in natural rubber as standard but other compounds are available on request. Stainless steel metal parts are also available on request for substantial volume orders.
However, if you require a bespoke Bobbin to your specific dimensional, capacity o
  • Product Detail



We proviced different type of elastomers upon different request.

Natural Rubber (NR)

Advantages:  Outstanding resilience; high tensile strength; superior resistance to tear and abasion; excellent rebound elasticity (snap); good flexibility at low temperatures (-40° to 155° F).

Limitations:  Poor resistance to heat, ozone, and sunlight; very little resistance to oil gasoline, and hydrocarbon solvents.

  • Operating temperatures should not exceed 155° F.

  • Natural Rubber is not recommended from exposure to oil, gasoline, ozone sunlight.



Neoprene (CR)

All static load test data for the Torsional Vibro-Insulator® Mounts is based on Neoprene.

Advantages:  Good inherent flame resistance; moderate resistance to oil and gasoline; very good resistance to weather, ozone, and natural aging; good resistance to flex cracking; very good resistance to alkalis and acids.

Limitations:  Poor to fair resistance aromatic and oxygenated solvents; limited flexibility at low temperatures (10° F to 180° F).

Nitrile (Buna-N)

Advantages:  Very good resistance to oil and gasoline; superior resistance to petroleum-based hydraulic fluids; wide range of service temperatures (-65° F to 300° F); good resistance to hydrocarbon solvents; very good resistance to alkalis and acids.

Limitations:  Inferior resistance to ozone, sunlight, and natural aging; poor resistance to oxygenated solvents.
