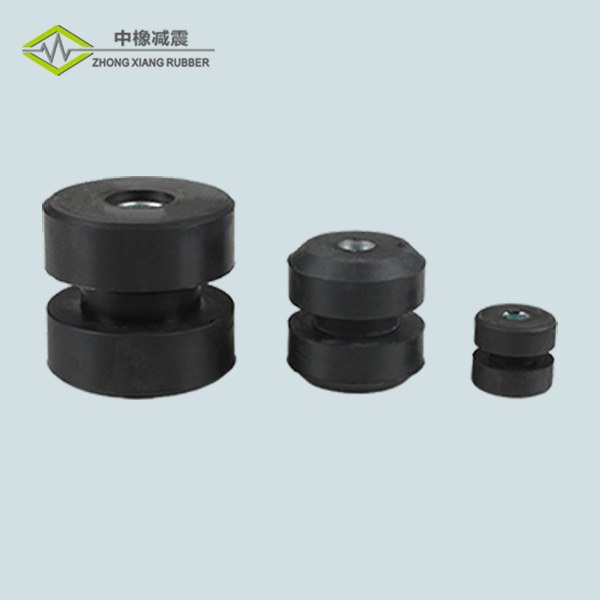

Center Bonded Mounts-EH series two piece mounts

Product Description: The EH Mountings, also known as two piece mounts or rubber isolators, are specifically designed for mobile applications such as construction equipment, agricultural machinery, materials-handling vehicles, and off-highway vehicles. They are engineered to effectively compensate for high dynamic and shock forces experienced in these demanding environments.

The EH Mountings consist of an assembly of two rubber/metal elements, providing superior horizontal stability while rest
  • Product Detail

EH two-piece mount drawing.jpg

dimension sheet.jpgWe proviced different type of elastomers upon different request.

Natural Rubber (NR)

Advantages:  Outstanding resilience; high tensile strength; superior resistance to tear and abasion; excellent rebound elasticity (snap); good flexibility at low temperatures (-40° to 155° F).

Limitations:  Poor resistance to heat, ozone, and sunlight; very little resistance to oil gasoline, and hydrocarbon solvents.

  • Operating temperatures should not exceed 155° F.

  • Natural Rubber is not recommended from exposure to oil, gasoline, ozone sunlight.



Neoprene (CR)

All static load test data for the Torsional Vibro-Insulator® Mounts is based on Neoprene.

Advantages:  Good inherent flame resistance; moderate resistance to oil and gasoline; very good resistance to weather, ozone, and natural aging; good resistance to flex cracking; very good resistance to alkalis and acids.

Limitations:  Poor to fair resistance aromatic and oxygenated solvents; limited flexibility at low temperatures (10° F to 180° F).

Nitrile (Buna-N)

Advantages:  Very good resistance to oil and gasoline; superior resistance to petroleum-based hydraulic fluids; wide range of service temperatures (-65° F to 300° F); good resistance to hydrocarbon solvents; very good resistance to alkalis and acids.

Limitations:  Inferior resistance to ozone, sunlight, and natural aging; poor resistance to oxygenated solvents.
